技术规格
1/2" - 2" 压力无关型调节阀 - 简易套件系列
尺寸范围
1/2" - 2"
阀体材料
DZR黄铜
温度范围
32°F 至 248°F(0°C 至 120°C)
端接
NPT 螺纹
配置
两通
特点和优势

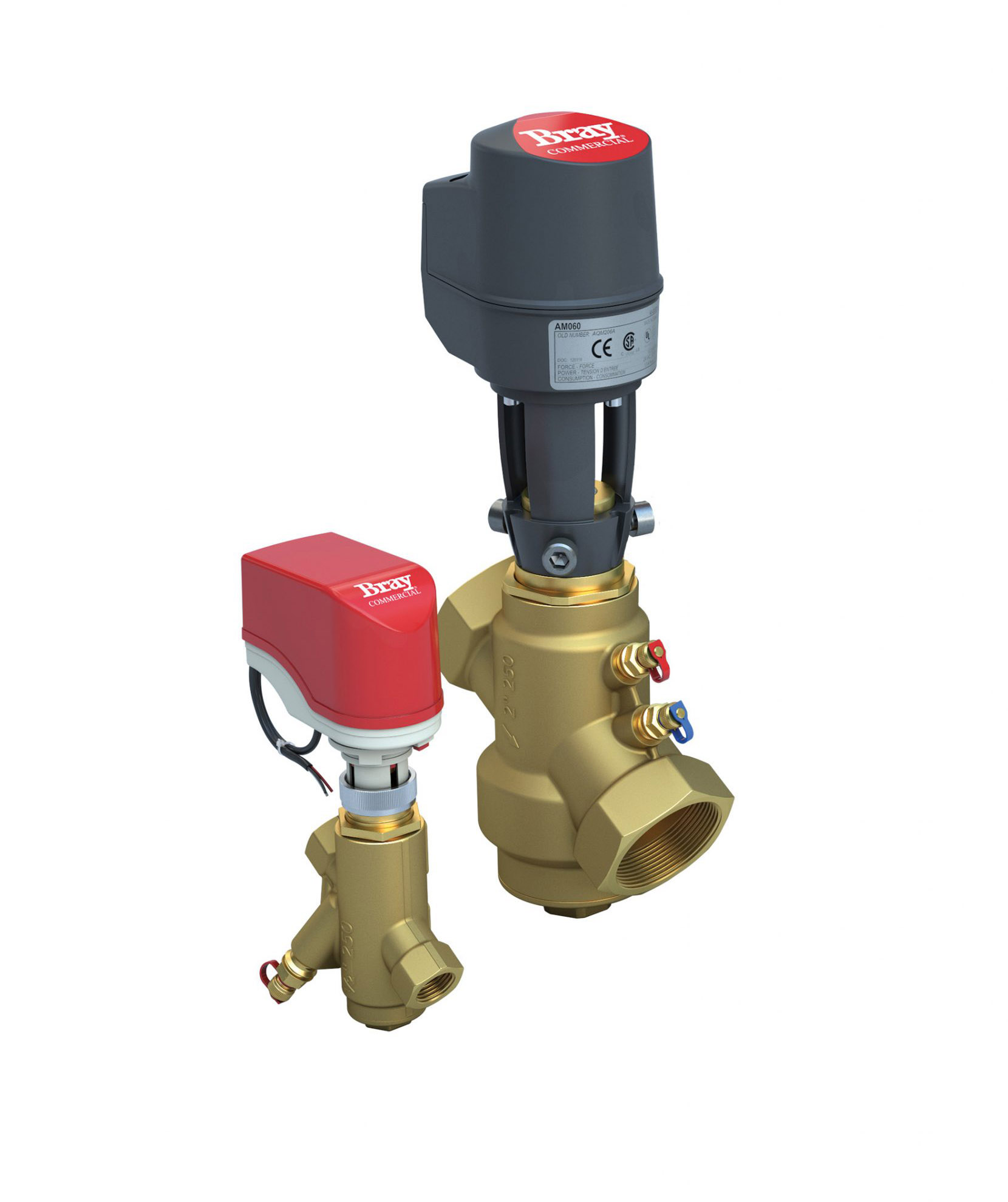

博雷Simple Set (SS)
系列螺纹式压力独立型控制 (PIC) 阀门专为各种热/冷水控制应用而设计。
SS系列在单一的紧凑外壳中结合了高量程范围控制和动态平衡能力,消除了单独平衡组件的材料、安装和调试成本。其最大流量可通过阀门顶部的调节旋钮手动轻松设置。Simple Set的独特设计实现了控制元件的全部行程,即使流量设置仅为阀门最大流量的一小部分,也能可靠控制。
Simple Set阀门能在其任何固定位置实现连续流量,不受进口压力变化的影响。这能防止在任何负载条件下出现溢流,从而有助于优化冷却应用中的盘管性能和初级设备的效率。
SS系列在单一的紧凑外壳中结合了高量程范围控制和动态平衡能力,消除了单独平衡组件的材料、安装和调试成本。其最大流量可通过阀门顶部的调节旋钮手动轻松设置。Simple Set的独特设计实现了控制元件的全部行程,即使流量设置仅为阀门最大流量的一小部分,也能可靠控制。
Simple Set阀门能在其任何固定位置实现连续流量,不受进口压力变化的影响。这能防止在任何负载条件下出现溢流,从而有助于优化冷却应用中的盘管性能和初级设备的效率。
